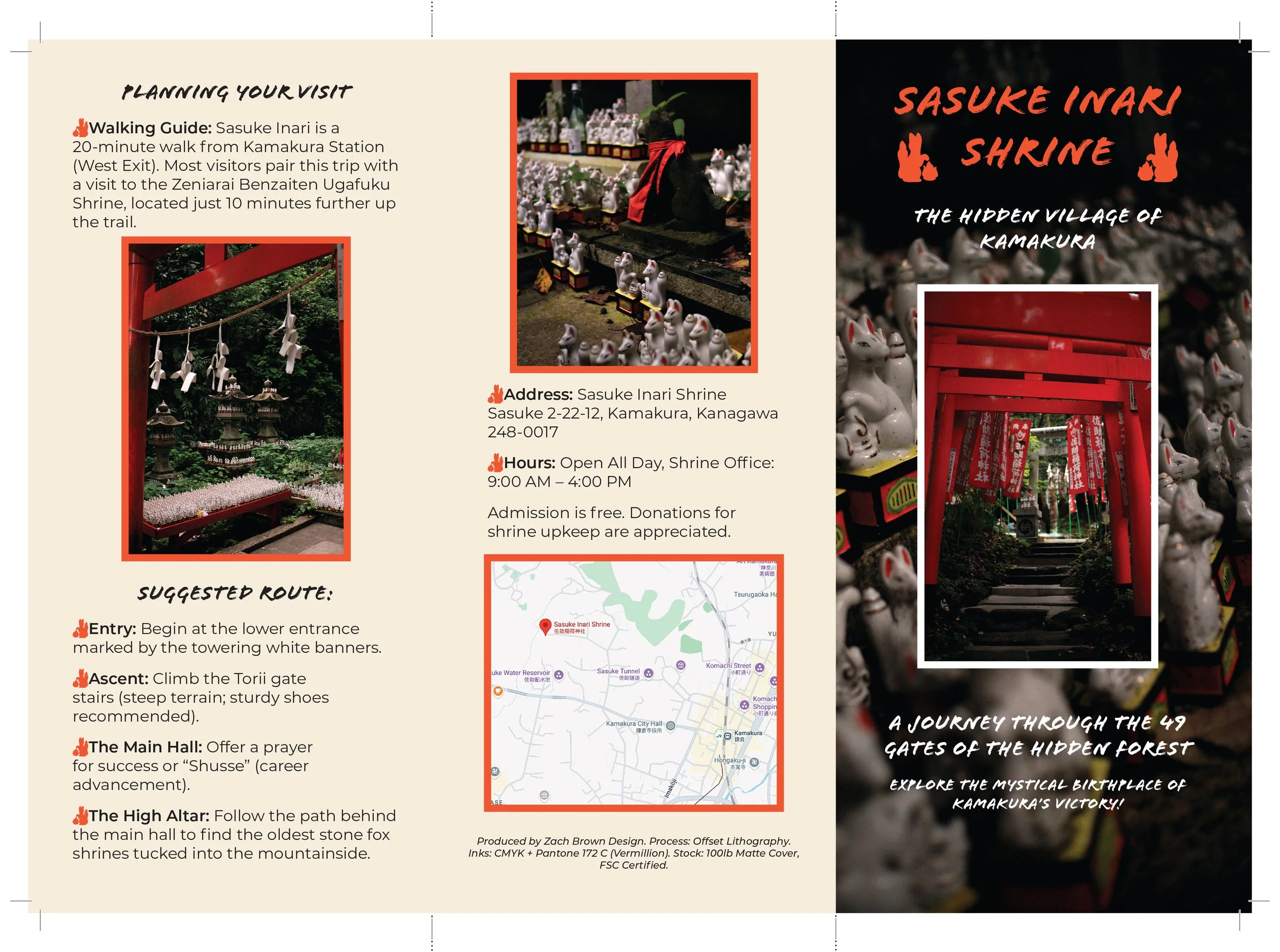

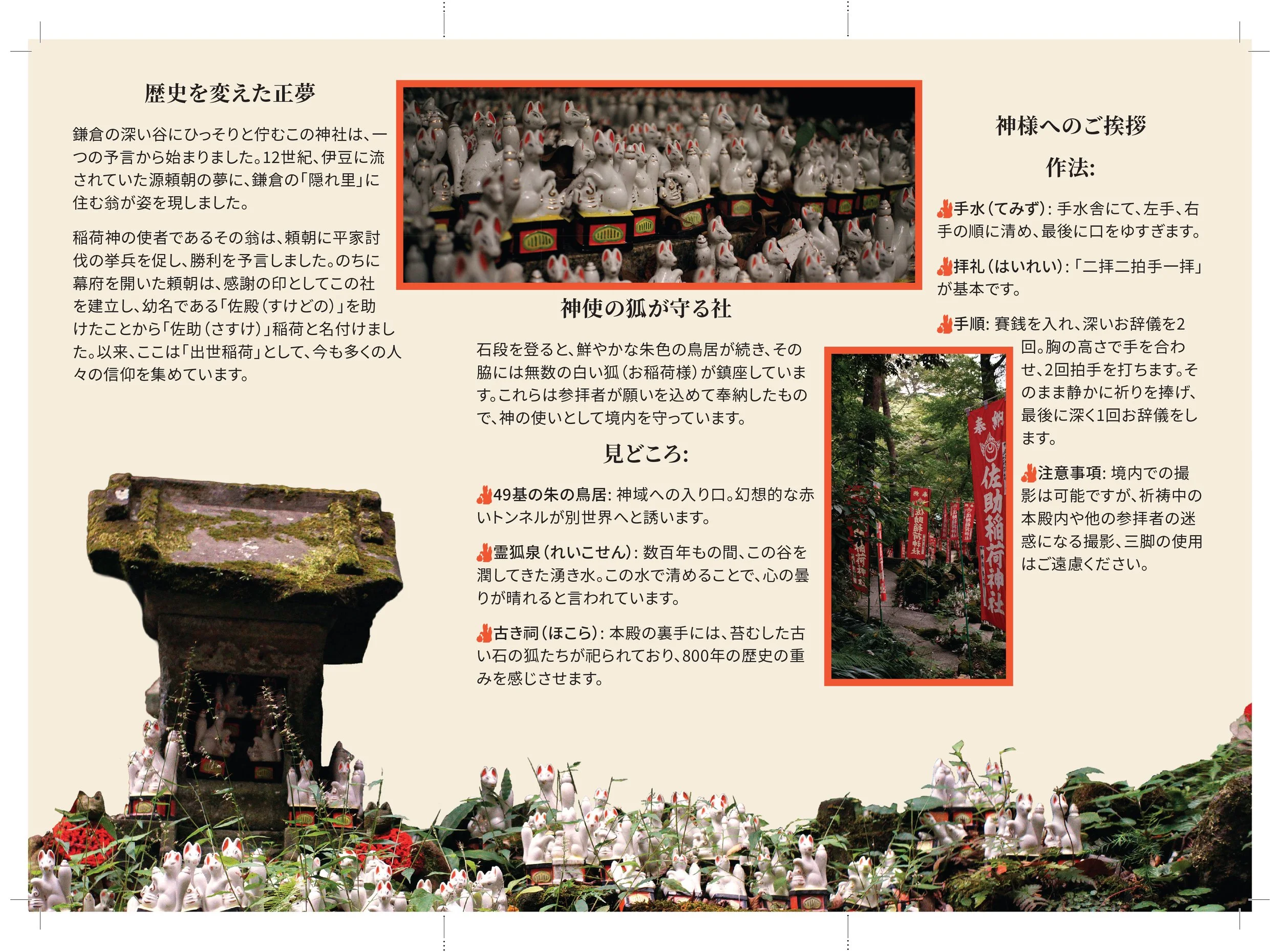

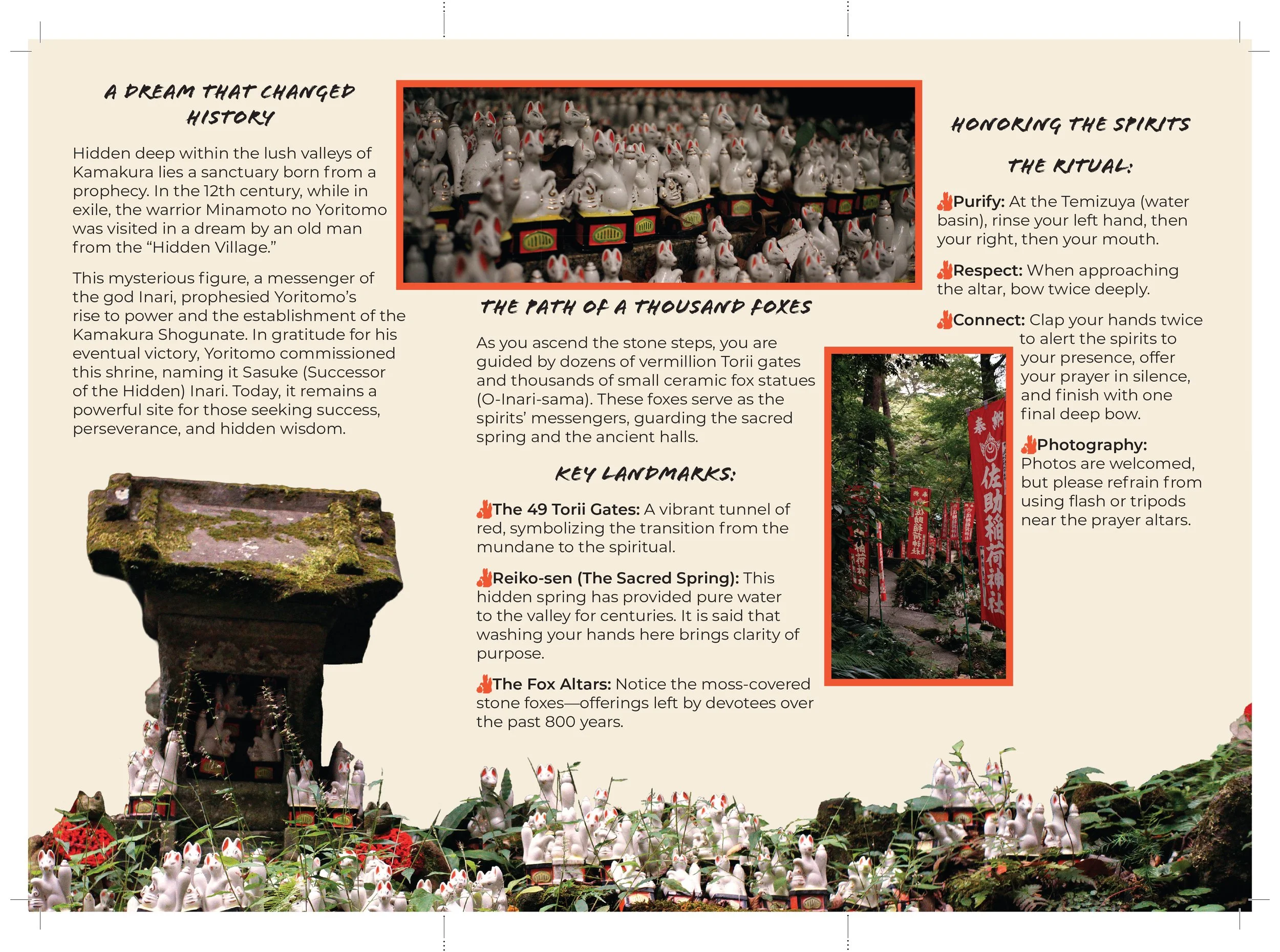

Project Title: Sasuke Inari Shrine | Bilingual Production & Localization System
The Challenge
To design and engineer a "single-source" production workflow for a high-end heritage guide. The project required maintaining 100% layout parity between English and Japanese versions while managing the unique technical constraints of CJK (Chinese, Japanese, Korean) typography.
Technical Process & Operations

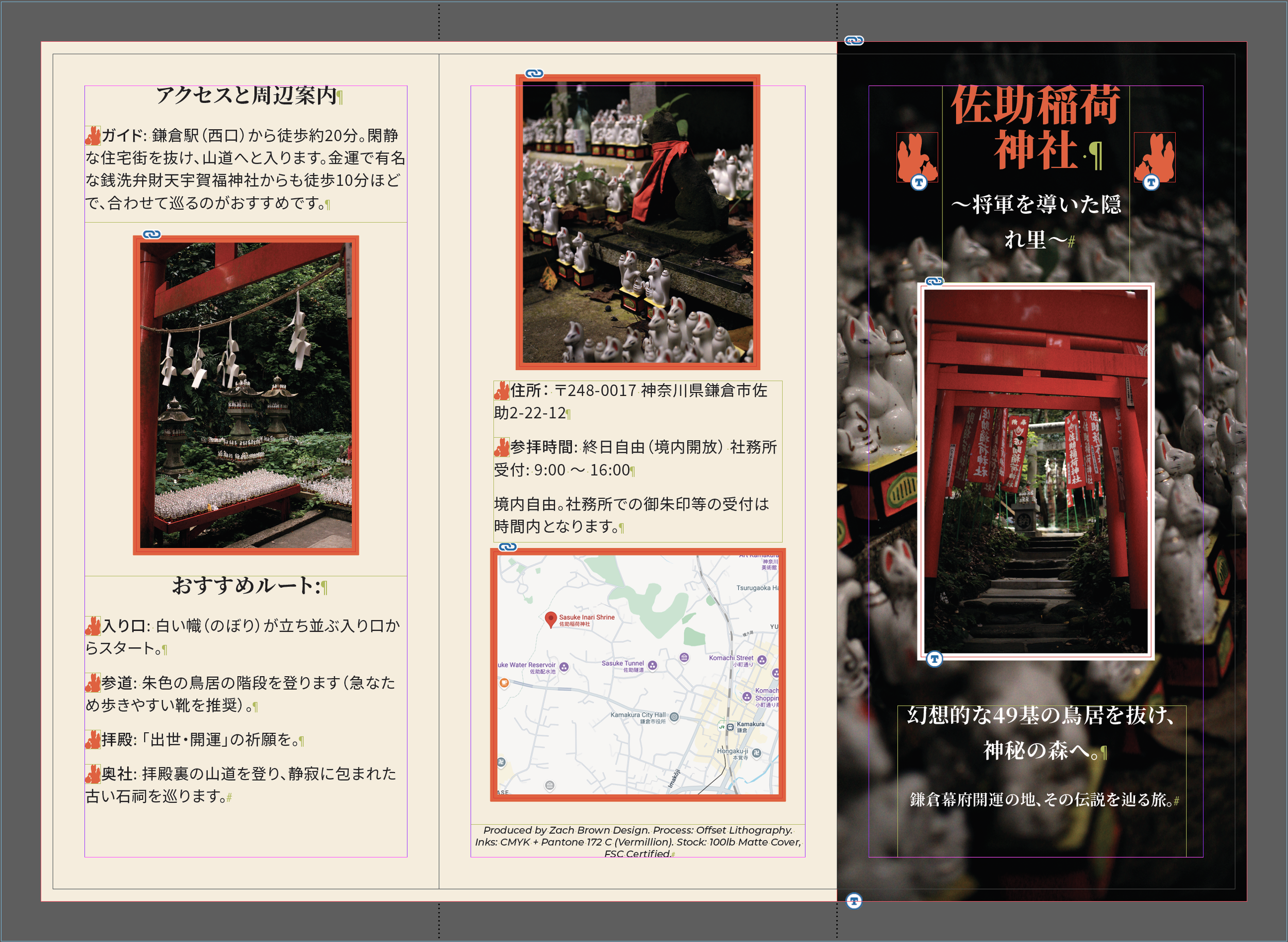

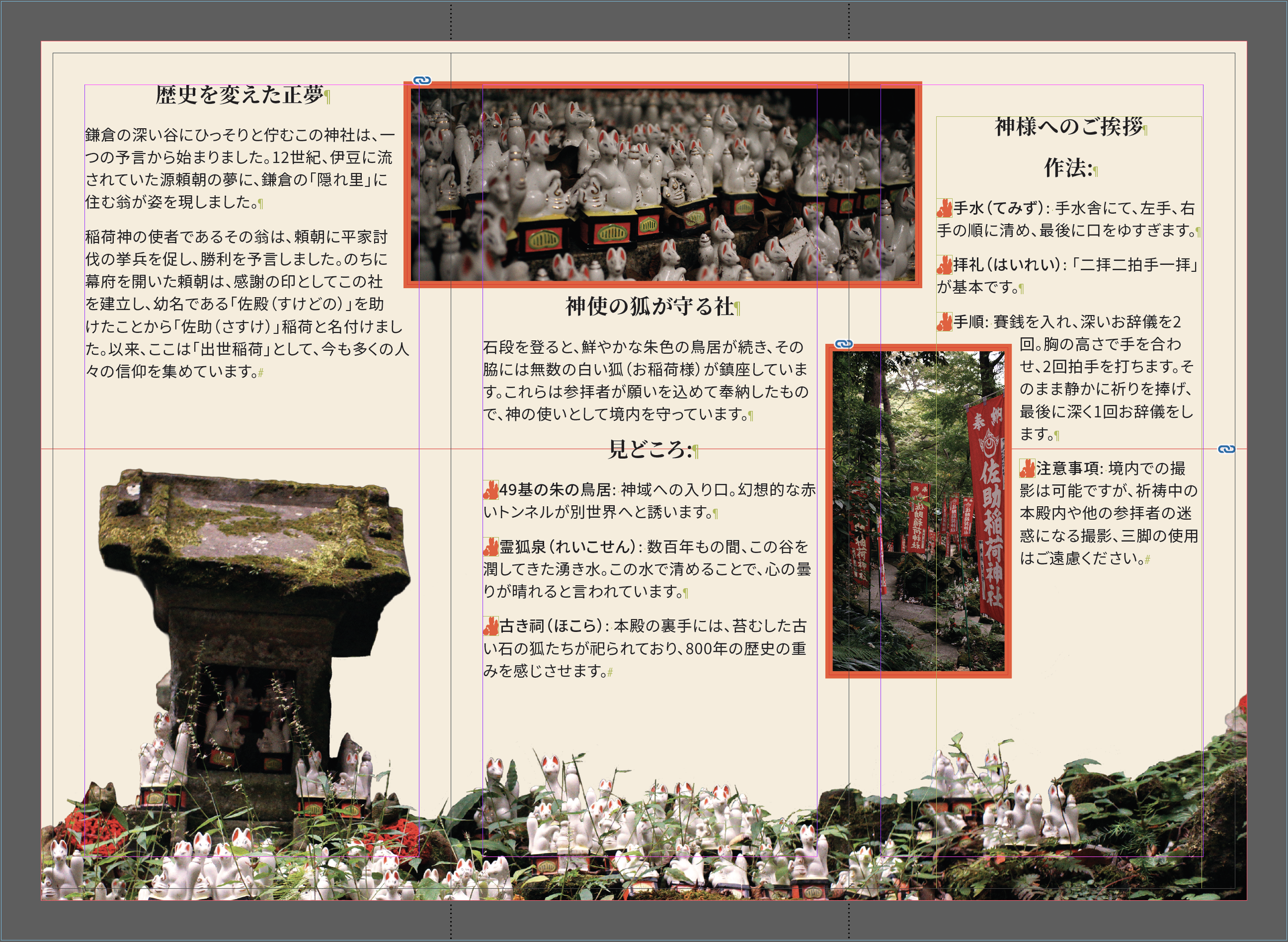

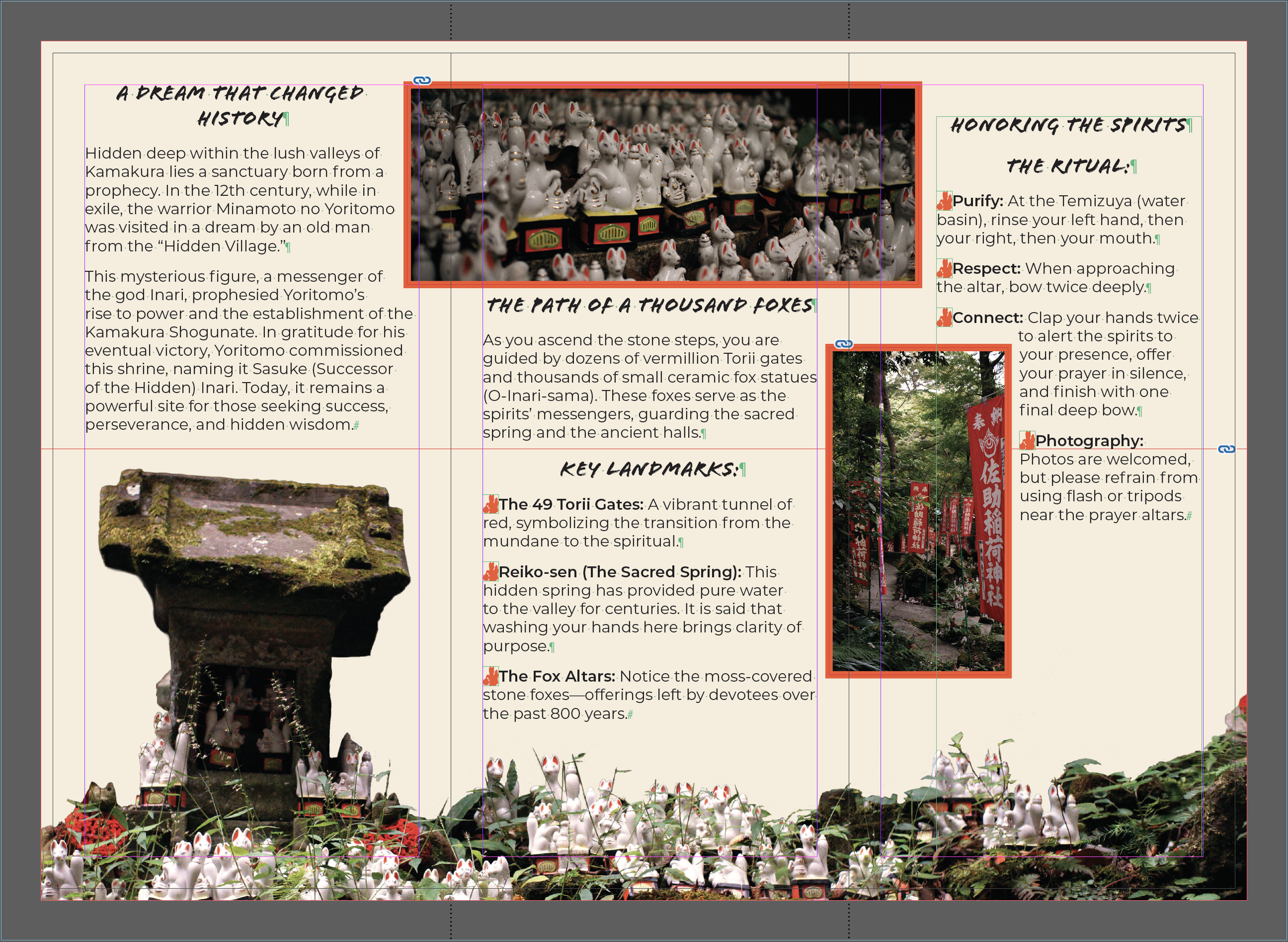

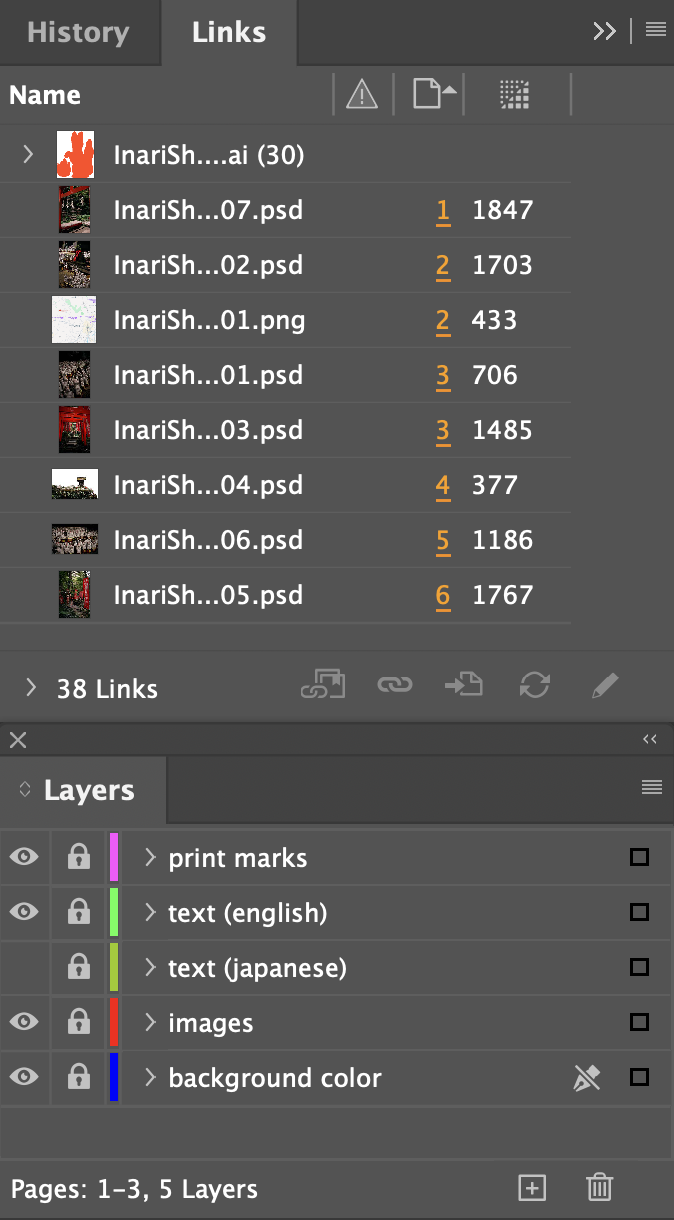

Single-Source Architecture: Built using a layered InDesign framework to allow for rapid language toggling. This "Master File" approach ensures that any global design changes (imagery, branding, or margins) update across all localized versions simultaneously.

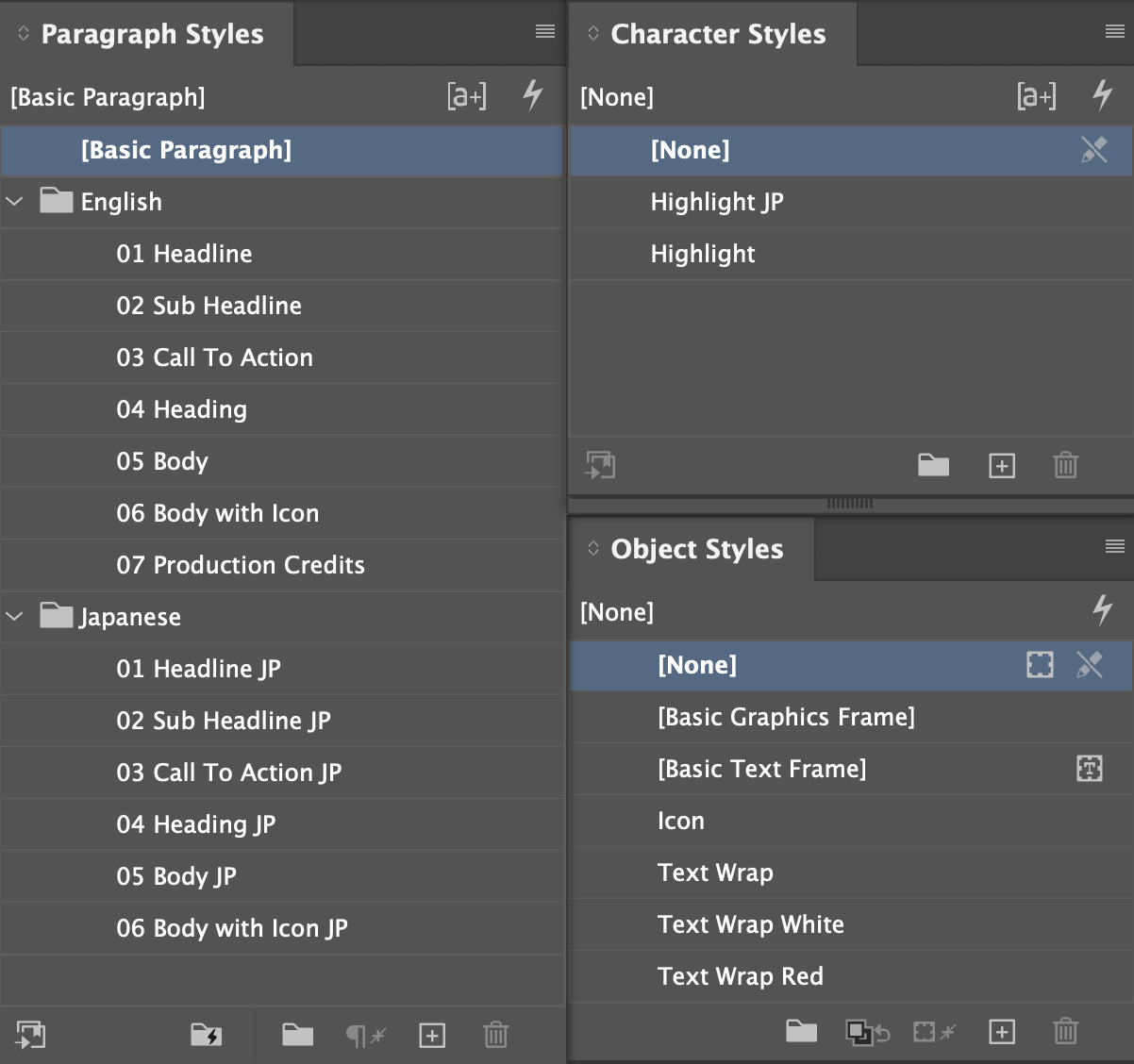

Typography Systems: Implemented a Parent/Child Paragraph Style hierarchy. This allowed for universal alignment settings while specifically tuning the Japanese version for CJK-specific requirements, including Kinjis (line-breaking rules) and Mojikumi (punctuation spacing).
Localization Engineering: Adjusted vertical leading and optical margin alignment to account for the increased complexity and "ink density" of Kanji characters compared to Latin script.
Bilingual Asset Management: Engineered custom vector maps and iconography to be fully bilingual, eliminating the need for separate image links per language and reducing final package size.
Print Production Specifications
Color Profile: High-fidelity CMYK + Pantone 172 C (Vermillion Spot Color) for brand-critical accuracy on the Torii gate visuals.
Finishing: Tri-fold mechanical with custom Fold Compensation (interior panels adjusted by 2mm) to prevent buckling.
Pre-press: Hand-off package includes a technical slug, $0.125"$ bleeds, and a non-printing dieline layer for vendor precision.
Substrate: Specified for 100lb Matte Cover, FSC-Certified.
The Result
A press-ready, scalable localization system that reduces production turn-around time for additional languages by 60% and ensures 100% brand consistency across international markets.
